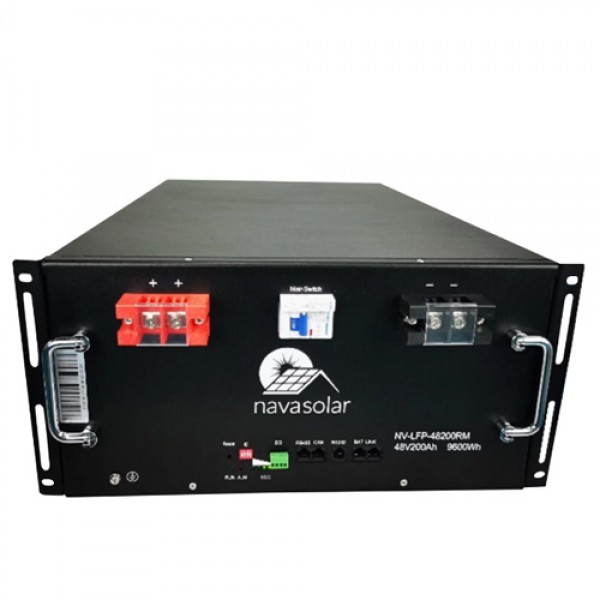

NavaSolar 48V 200Ah LiFePO4 9.6kWh RM Battery with BMS
Battery Data
- Model: NV-LFP-48200RM
- Nominal Voltage: 48V
- Normal Capacity: 9.6kWh
- Usable Capacity: 9kWh
- Operating Voltage: 42.5 ~ 54V
- Rated Charging Current: 40A (100A Max)
- Rated Discharging Current: 100A
- Max. Discharging Power: 4.2kW
- Max Charging Power: 5.4kW
- Dimension (W/D/H): 483/680/225mm
- Weight: 78Kg
- IP Protection: N/A
- Working Temperature: 0 C~+55 C
- Storage Temperature: -20 C~+55 C
Features
DOD: 80%
Cycle Life: >4000 times
Parallel Connection: Max .16packs
Communication Port: CAN/RS485
Warranty: 5 Years * To be Installed by Qualified Electricians with COC to Qualify.
