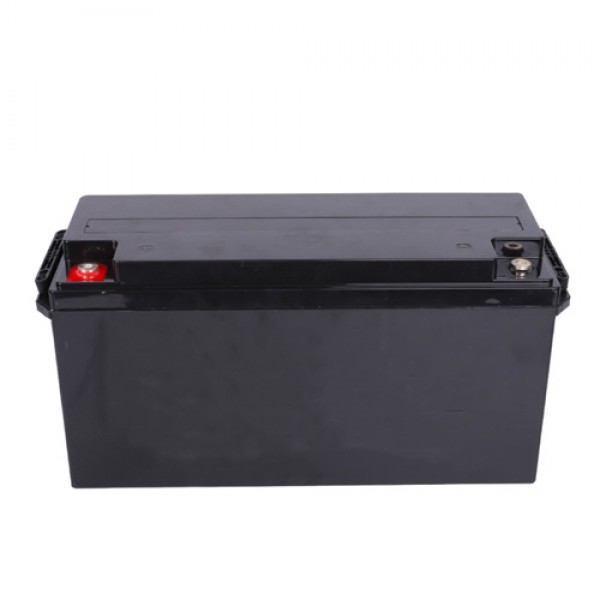

NavaSolar 25.6V 100Ah 2.56kWh LiFePO4 Battery
NV-LFP-25100E (25.6V100Ah)
NavaSolar NV-LFP series use quality trustable LiFePO4 cells, with build-in BMS system. IP65 protection, support series and parallel use, is an ideal choice for outdoor, small energy storage, marine and other fields.
Features
Safest lithium battery technology
Lithium iron Phosphate Battery(LiFePO4)
Eco-friendly
Special protection plate, supporting parallel
Multiple safety protection
Intelligent balancing function
20 Years Designed service life
Mechanical Specifications
Case Material: ABS
Cell Type -Chemistry Prismatic: LiFePO4
Terminal Type: M8
IP Grade: IP65
BMS Characteristics
Recommended Charge Current: 50A
Maximum Charge Current: 100A
Maximum Continuous Discharge Current: 100A
Recommended Charge Voltage: 27.2~27.6V
Max Charge Voltage: 29.2V
Overcharge Protection Voltage: 29.6~30.0V
Charge Mode: CC/CV
Discharge Cut-off Voltage (BMS): 17.6V
Basic Performance
Nominal Voltage: 2 5.6V
Nominal Capacity: 100Ah
Standard Discharge Time: 100A @60min
Energy: 2.56K Wh
IR: Self Discharge: Cells Square: 100Ah
Cycle Life: 2500 times (1C/1C)
Size: 483x170x240
Weight: 21KG
